Electric Vehicle Charging Station Installation Guide

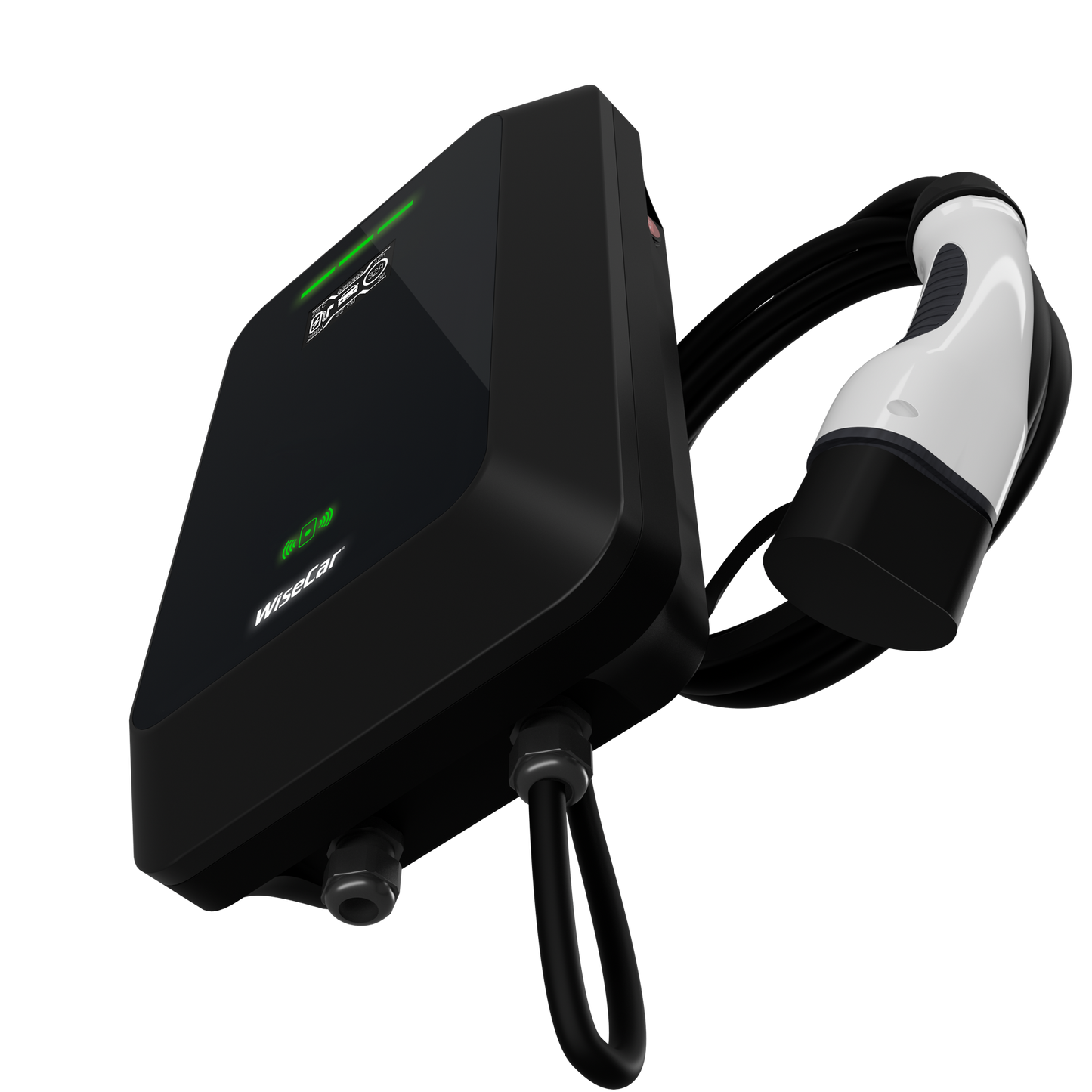

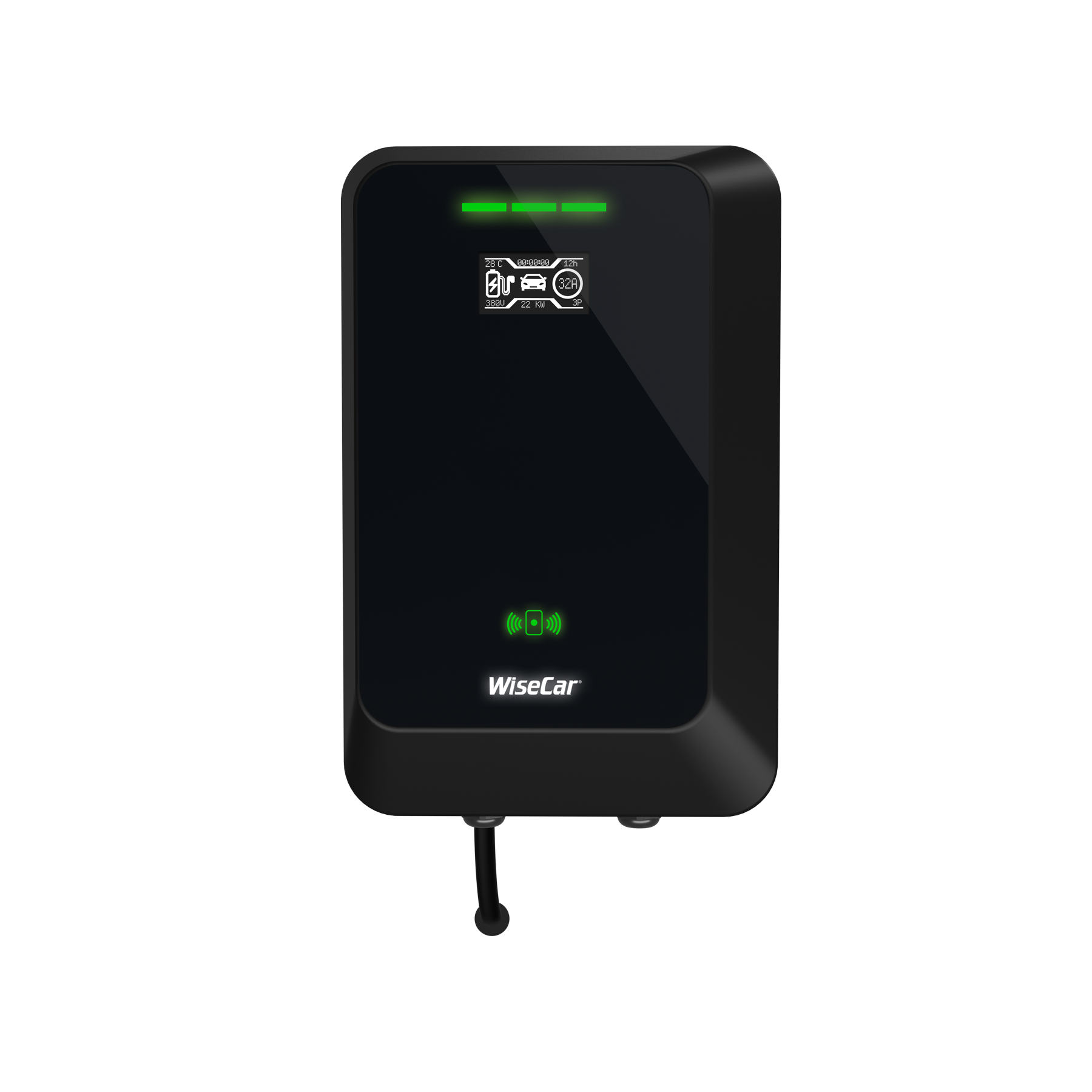

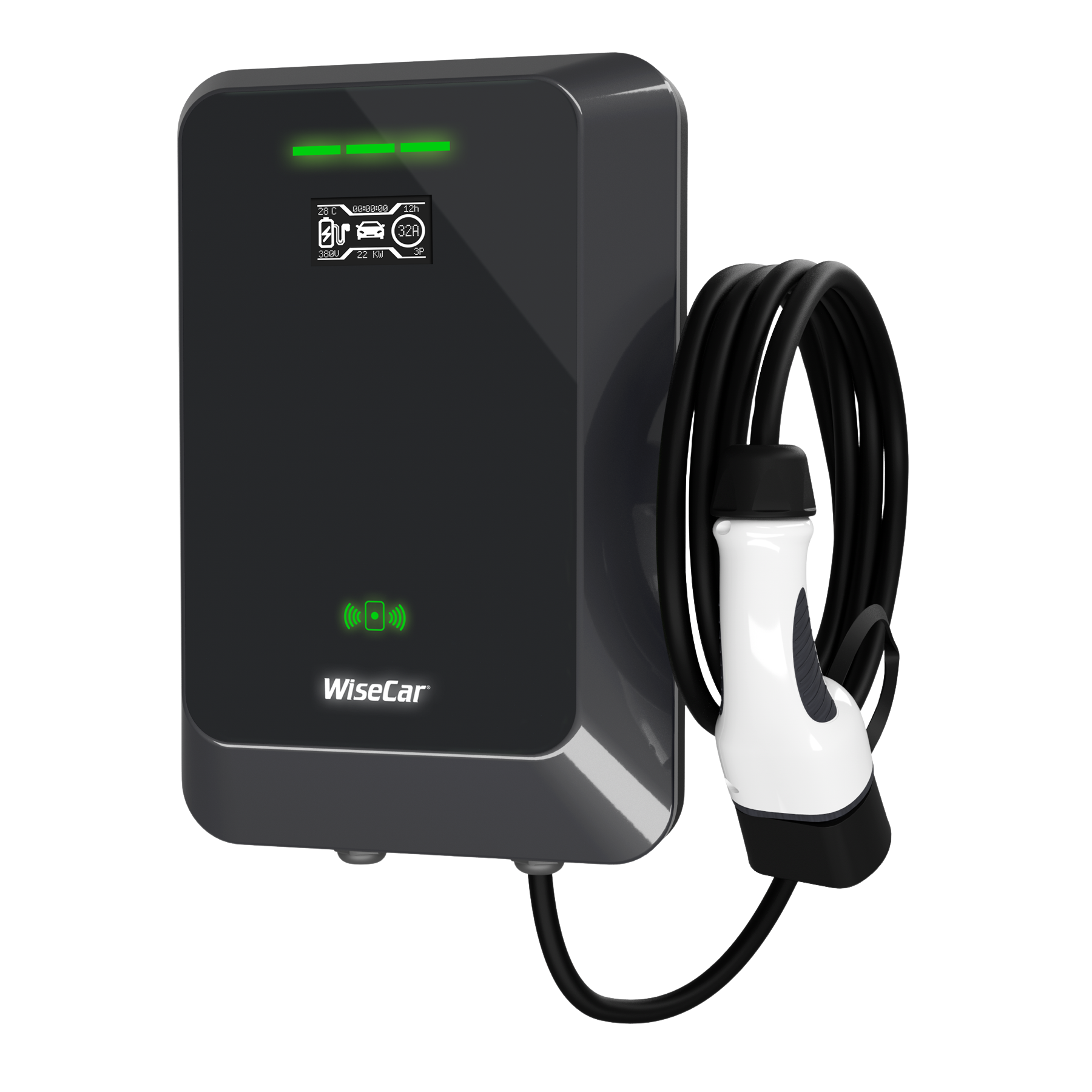

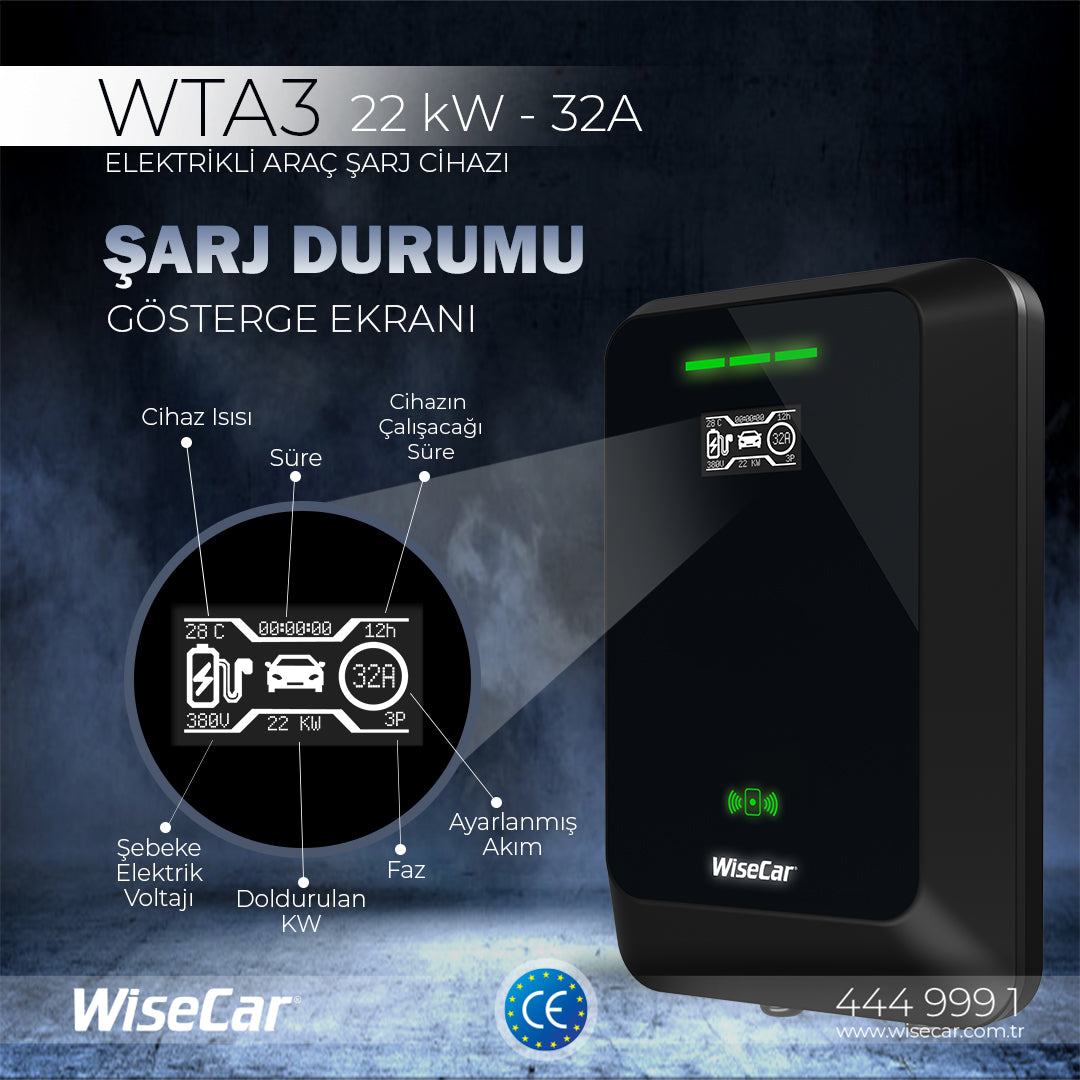

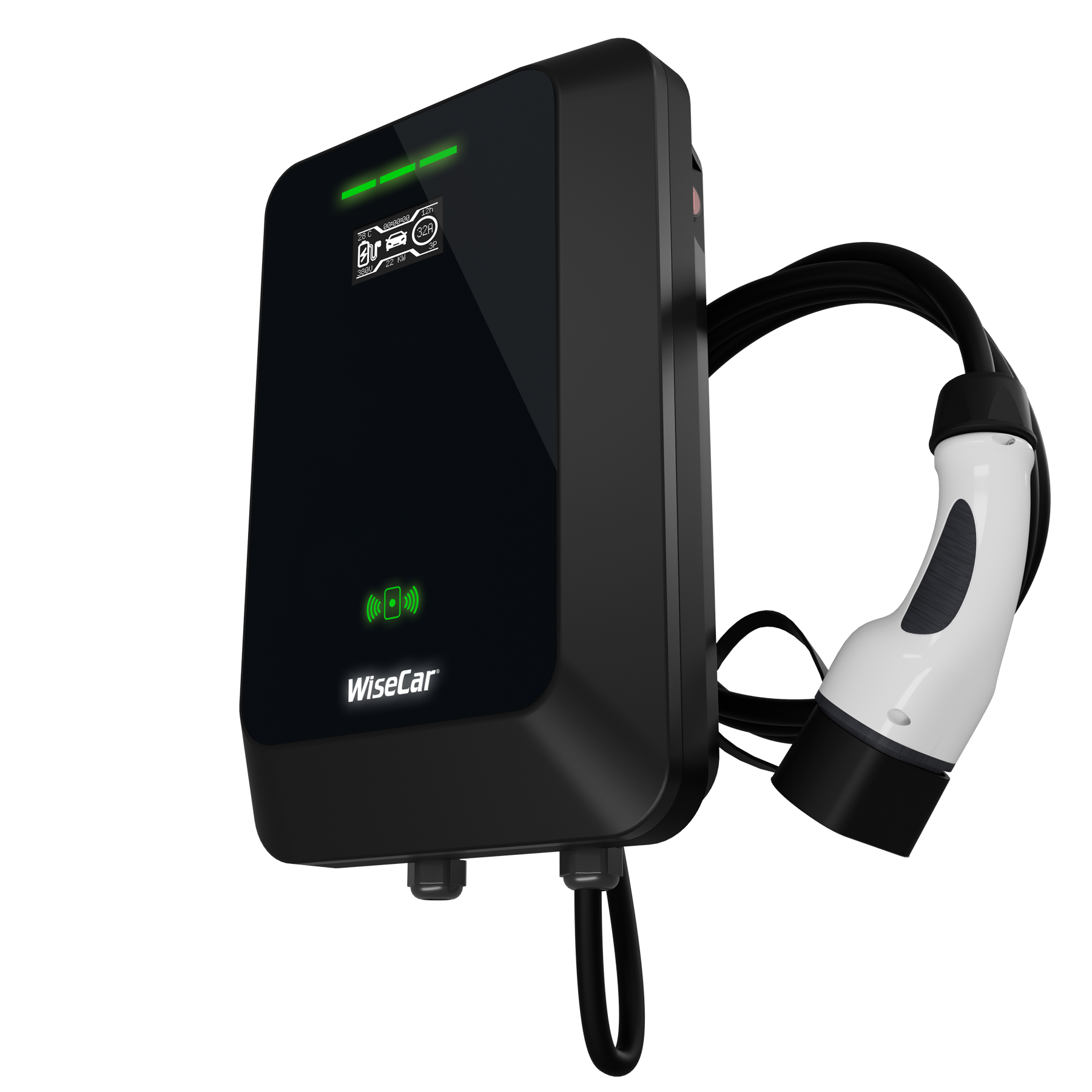

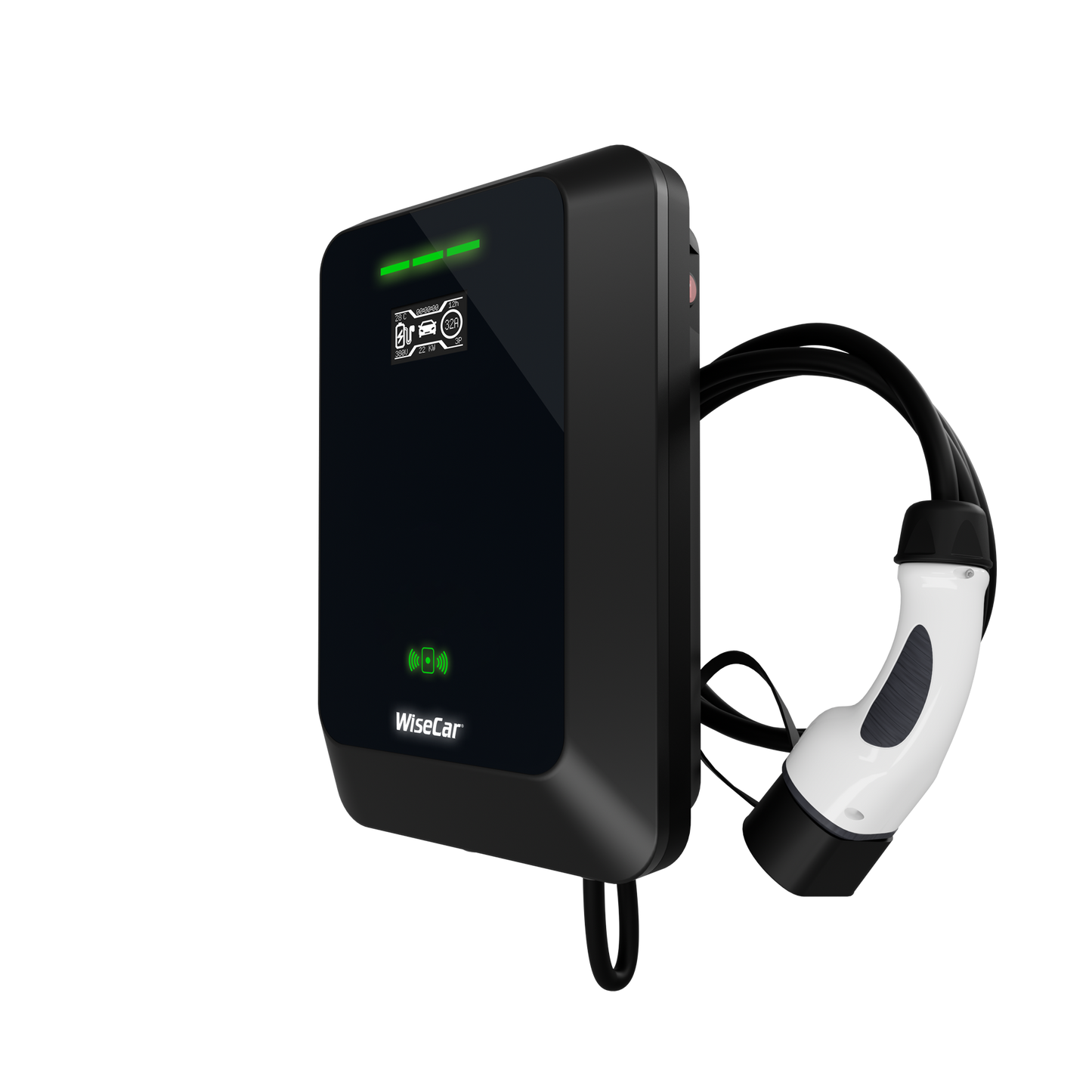

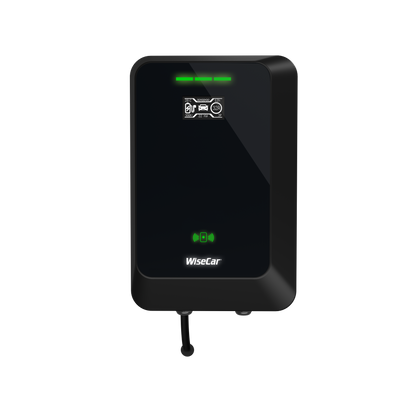

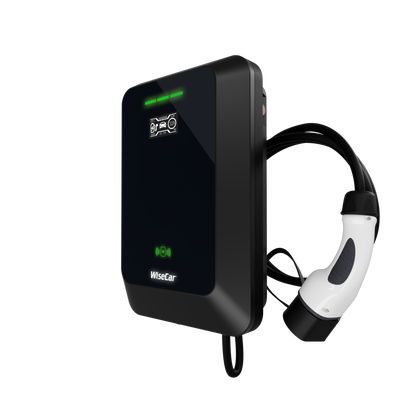

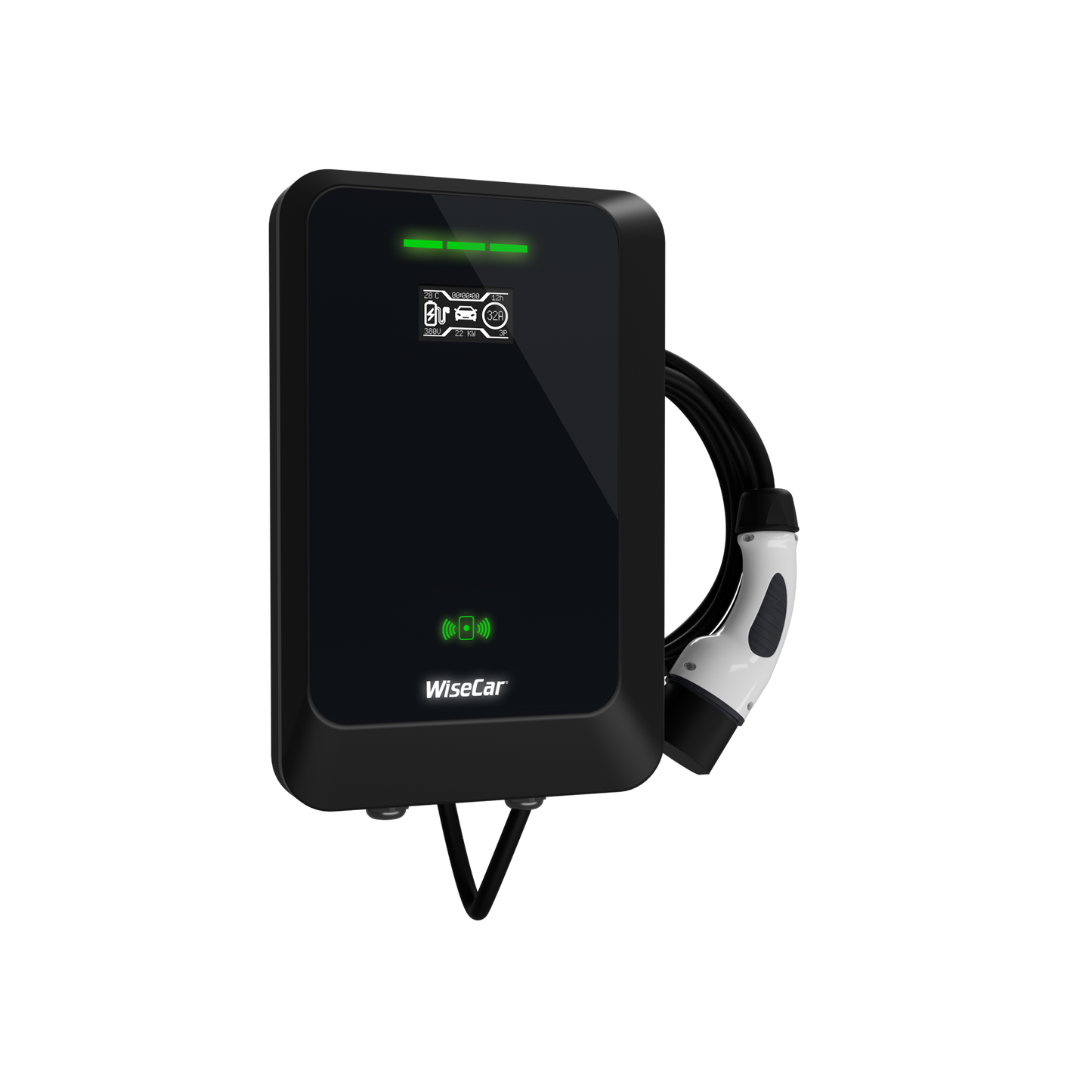

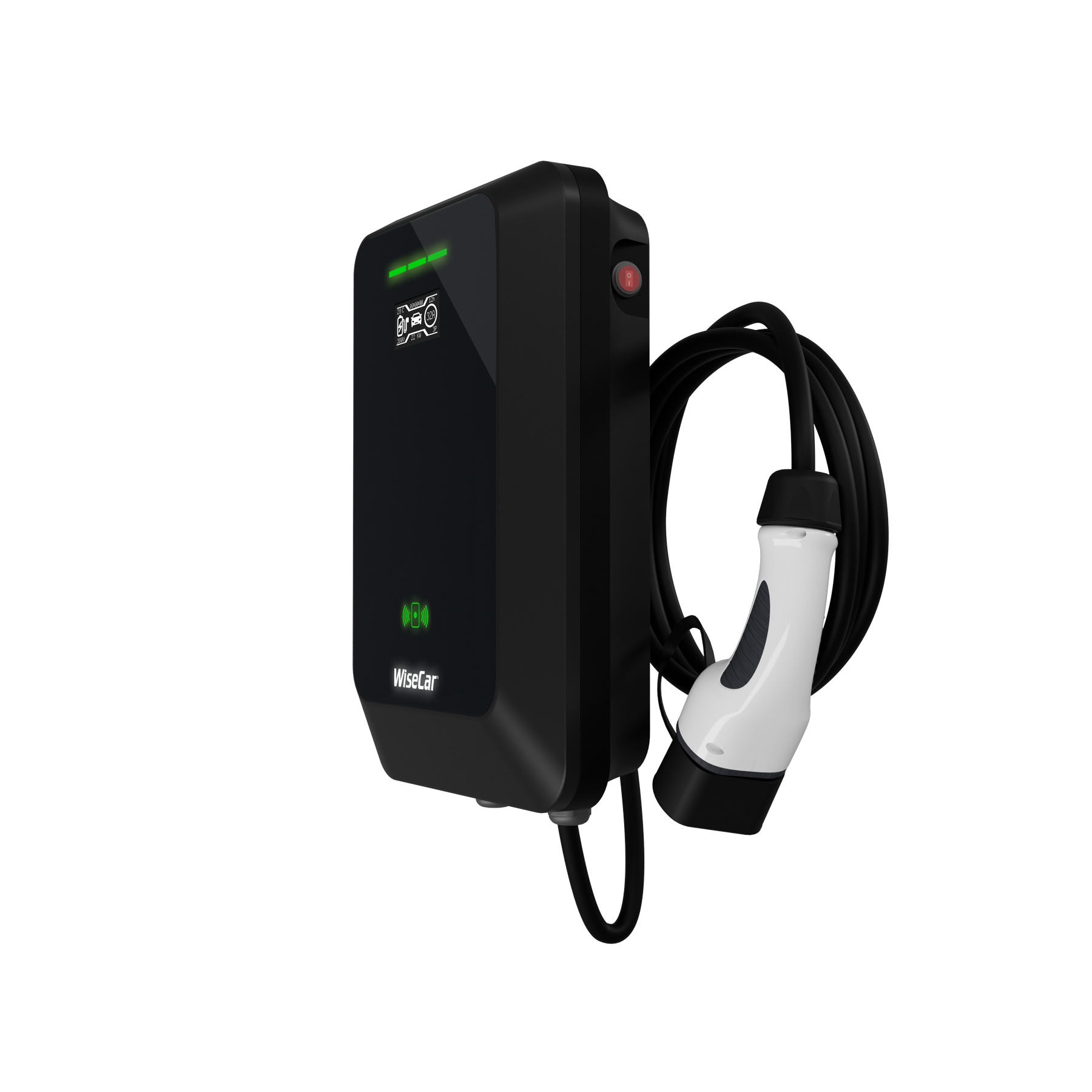

Easily set up your charger with WiseCar. Guidance up to 100 meters is here!
Step 1: Pre-Installation Preparation
- Required Materials: WiseCar Charger, copper cable, fuse box, residual current circuit breaker (30 mA).
- Power Control: 32A fuse for 7.4 kW, 40A fuse for 22 kW.
Step 2: Selecting Cable and Distance
Our recommendations for correct cable cross-section:
| Strength | Distance | Cable Cross Section | Notes |
|---|---|---|---|
| 7.4 kW (Single Phase) | 0-20m | 3x4 mm² | Standard |
| 7.4kW | 20-50m | 3x6 mm² | Middle distance |
| 7.4kW | 50-100 meters | 3x10 mm² | Long distance |
| 22 kW (Three Phase) | 0-25m | 5x6 mm² | Standard |
| 22kW | 25-50m | 5x10 mm² | Middle distance |
| 22kW | 50-100 meters | 5x16 mm² | Long distance |
Cable Calculator

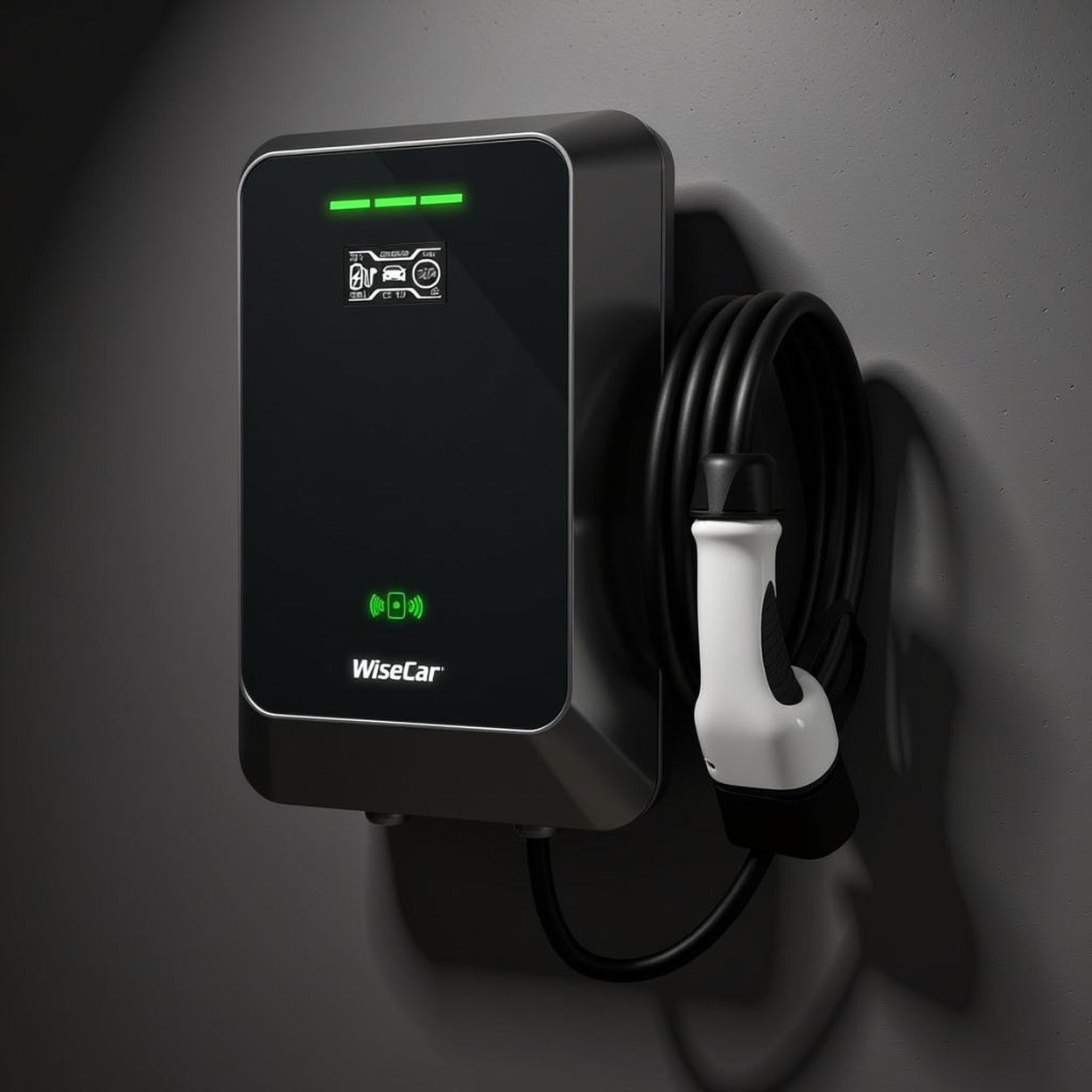

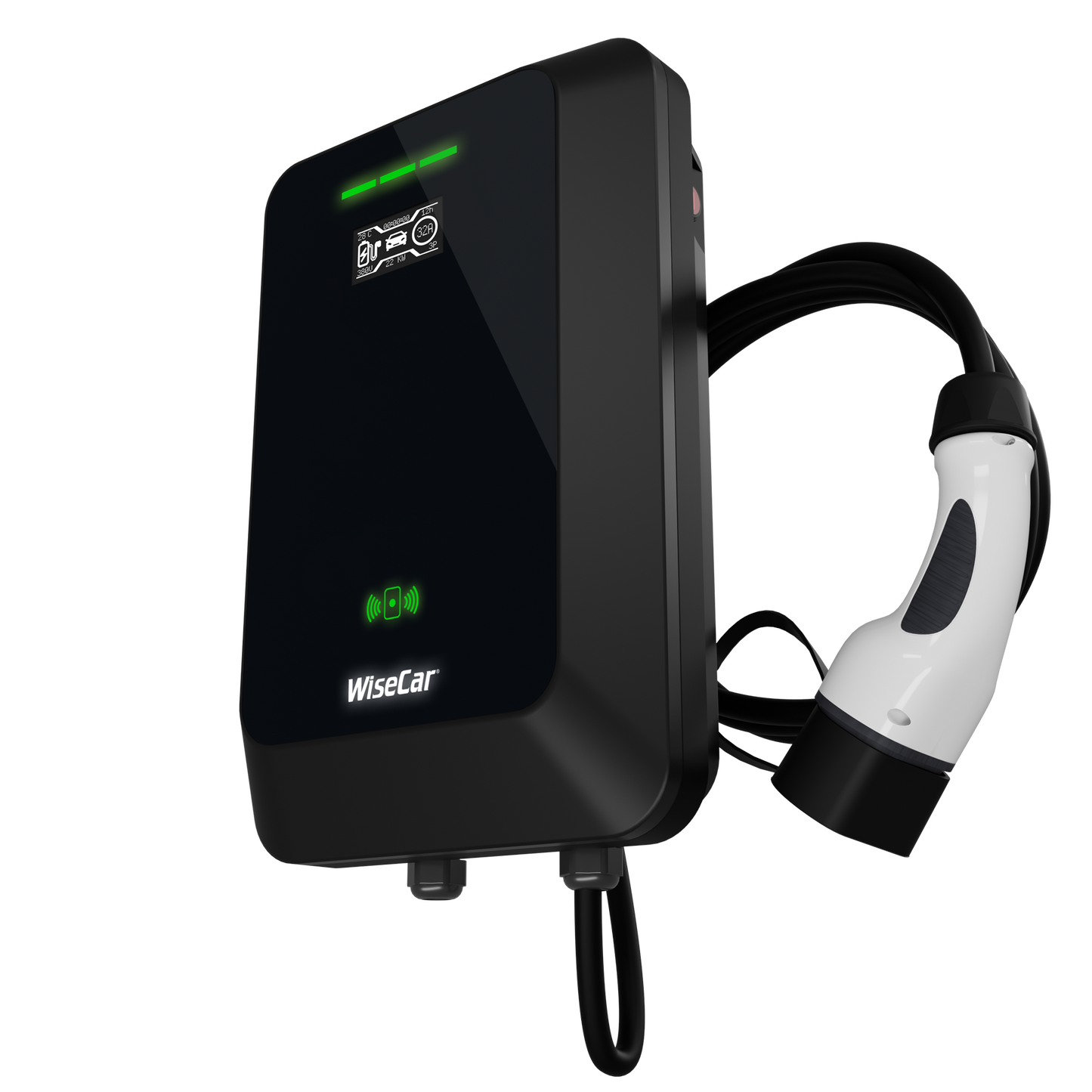

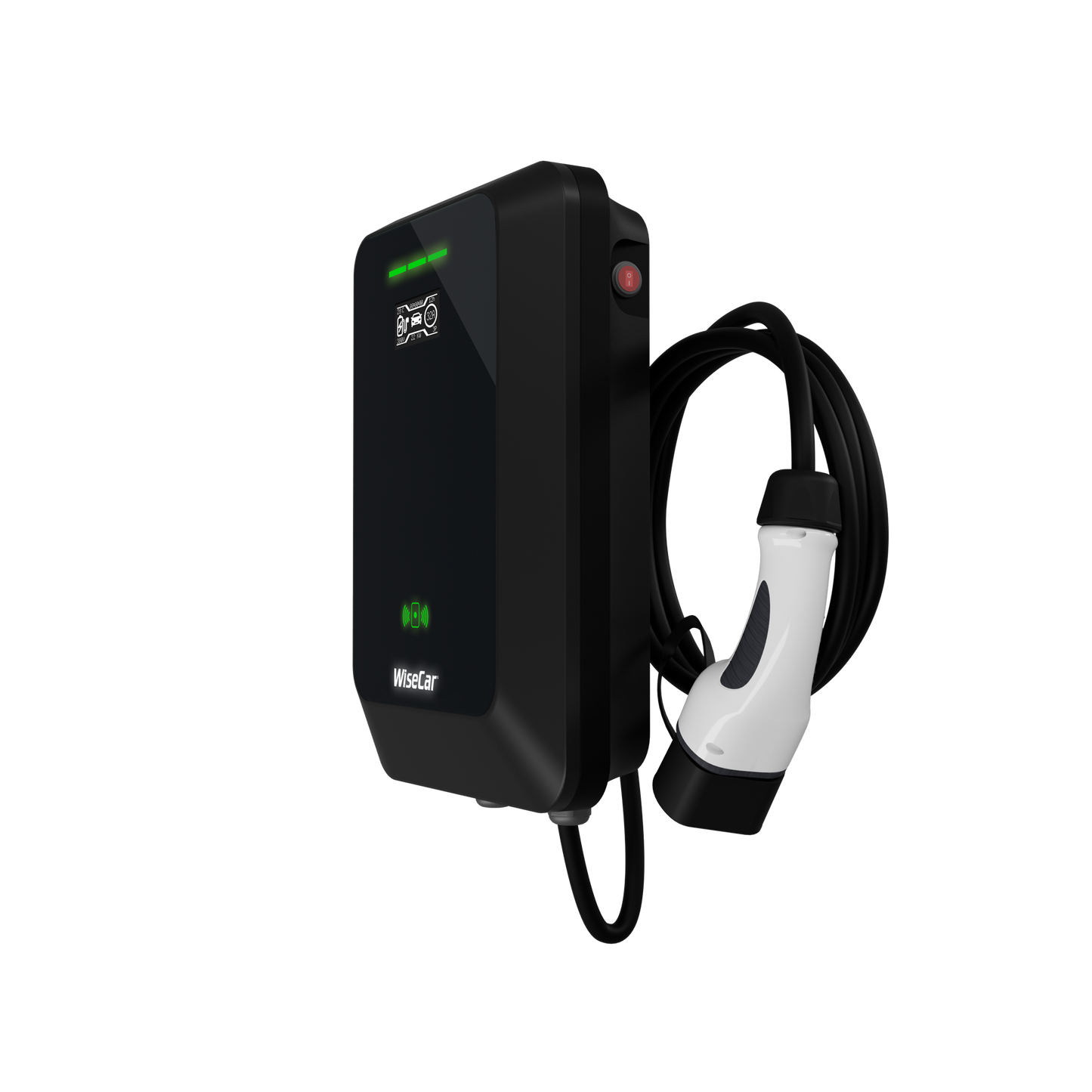

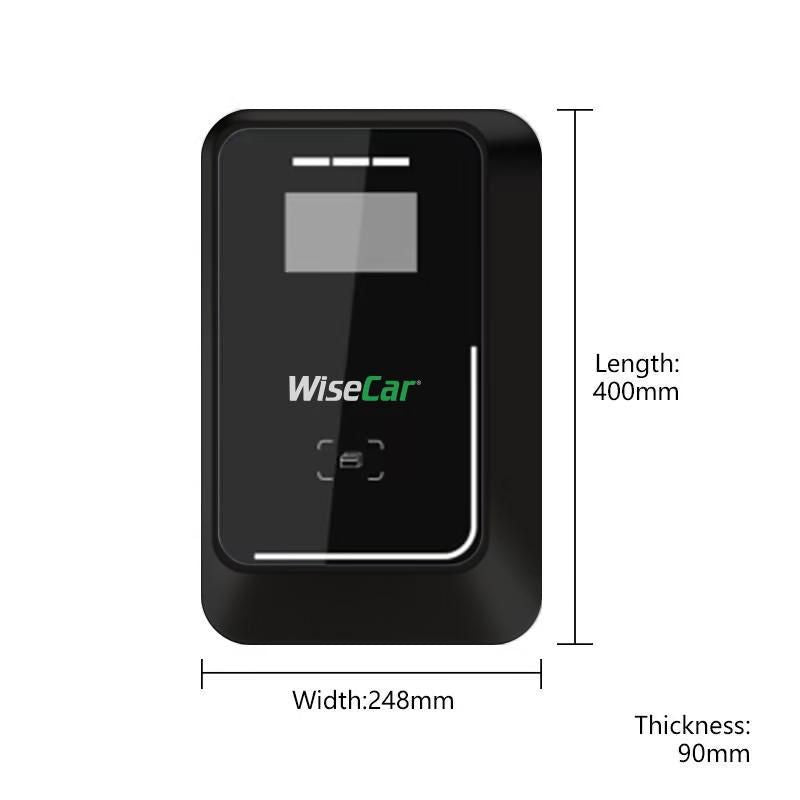

Step 3: Mount the Charger
- Mark the mounting plate on the wall.
- Drill holes and insert dowels.
- Secure the device.

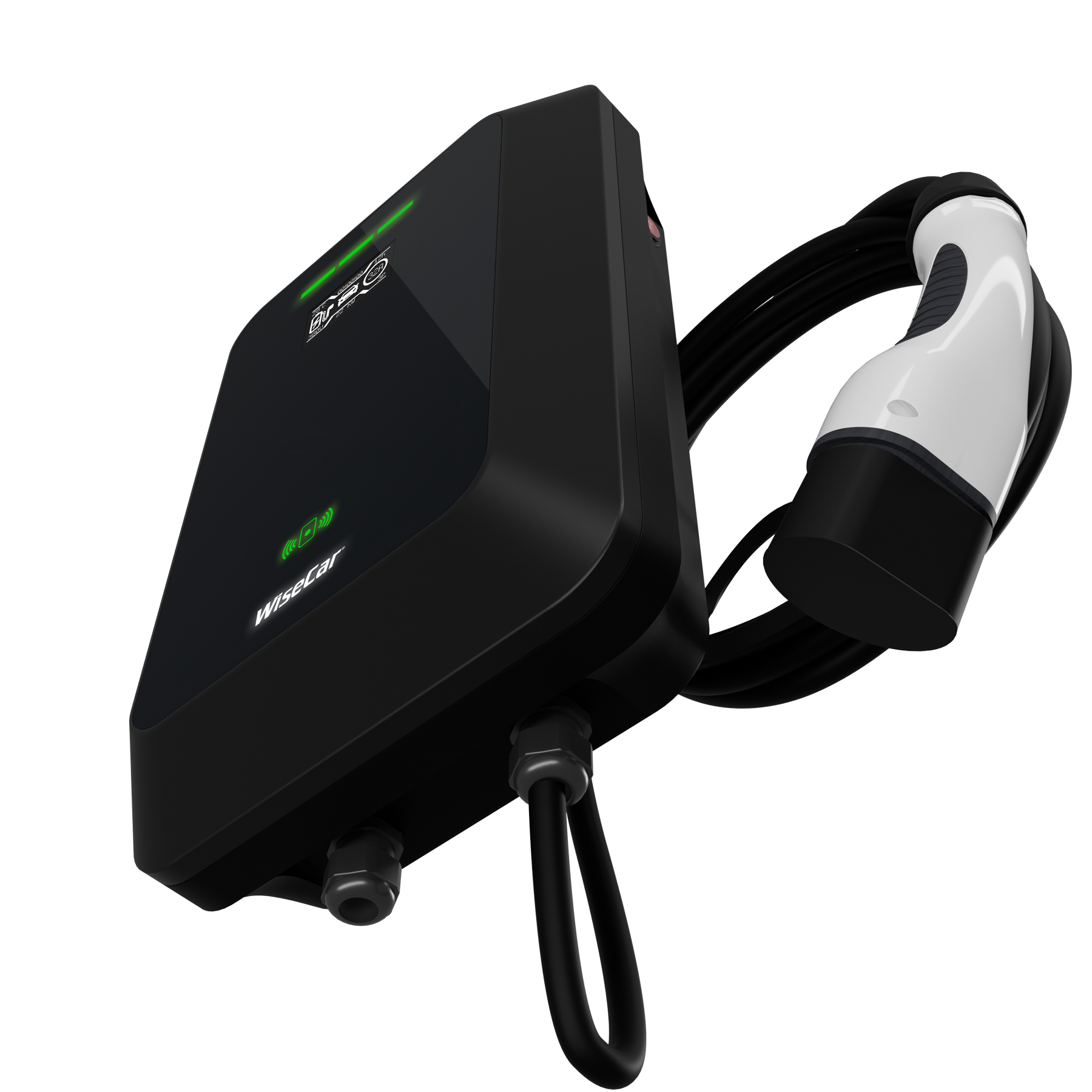

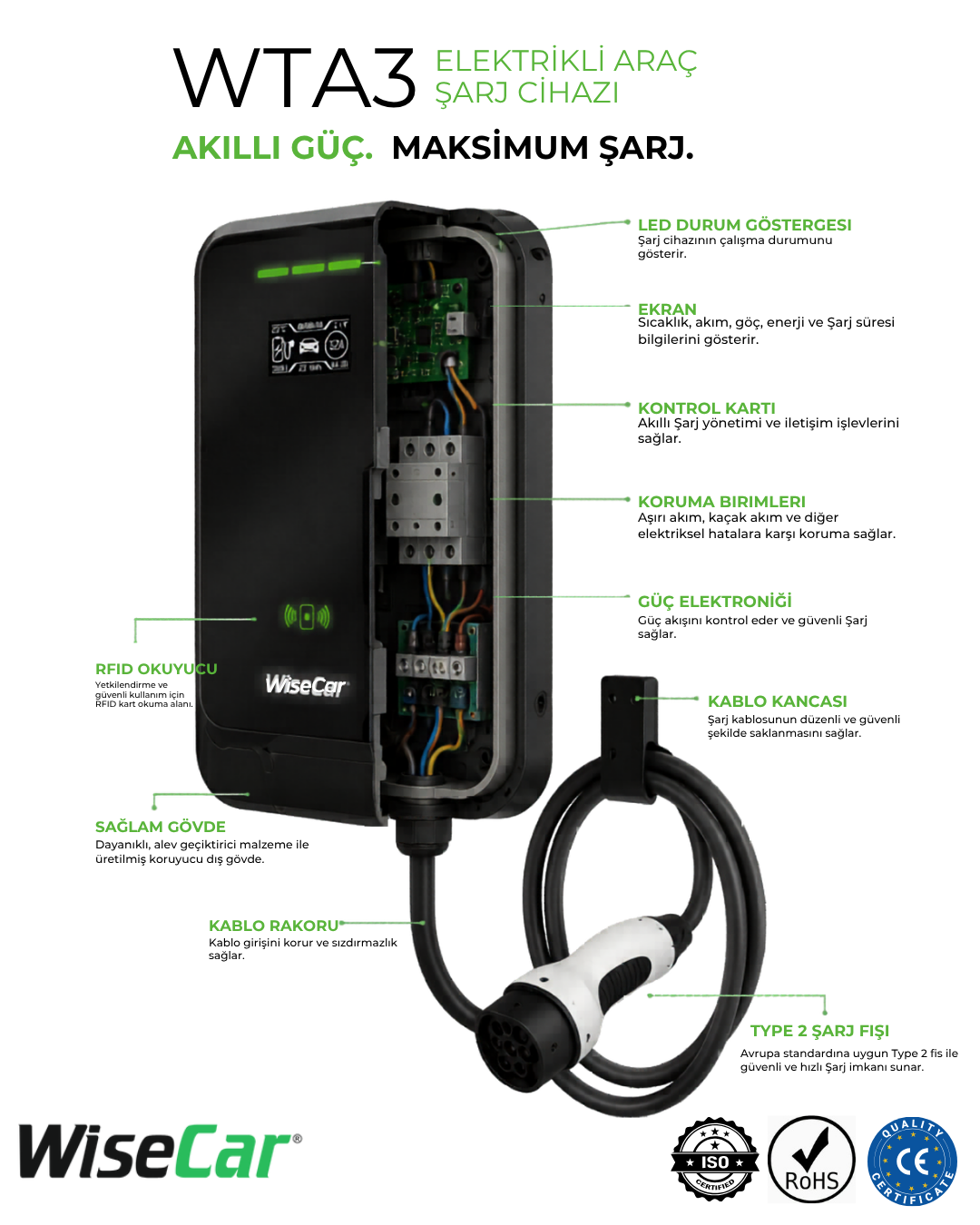

Step 4: Electrical Connection
Warning: Must be done by a qualified electrician!
Connect the wires to the terminal blocks (L1, L2, L3, N, PE).
Step 5: Testing and Deployment
- Check the connections.
- Perform a test charge.
Important Notes
Keep away from children. Use cable ducts at distances of 100 meters.
-
