WiseCar Portable Charger Wall Mount Bracket WTP3 Compatible
999 auf Lager
Verfügbarkeit für Abholungen konnte nicht geladen werden
Peşin Fiyatına 3 TAKSİT
Anlaşmalı kartlarda vade farkı yok.

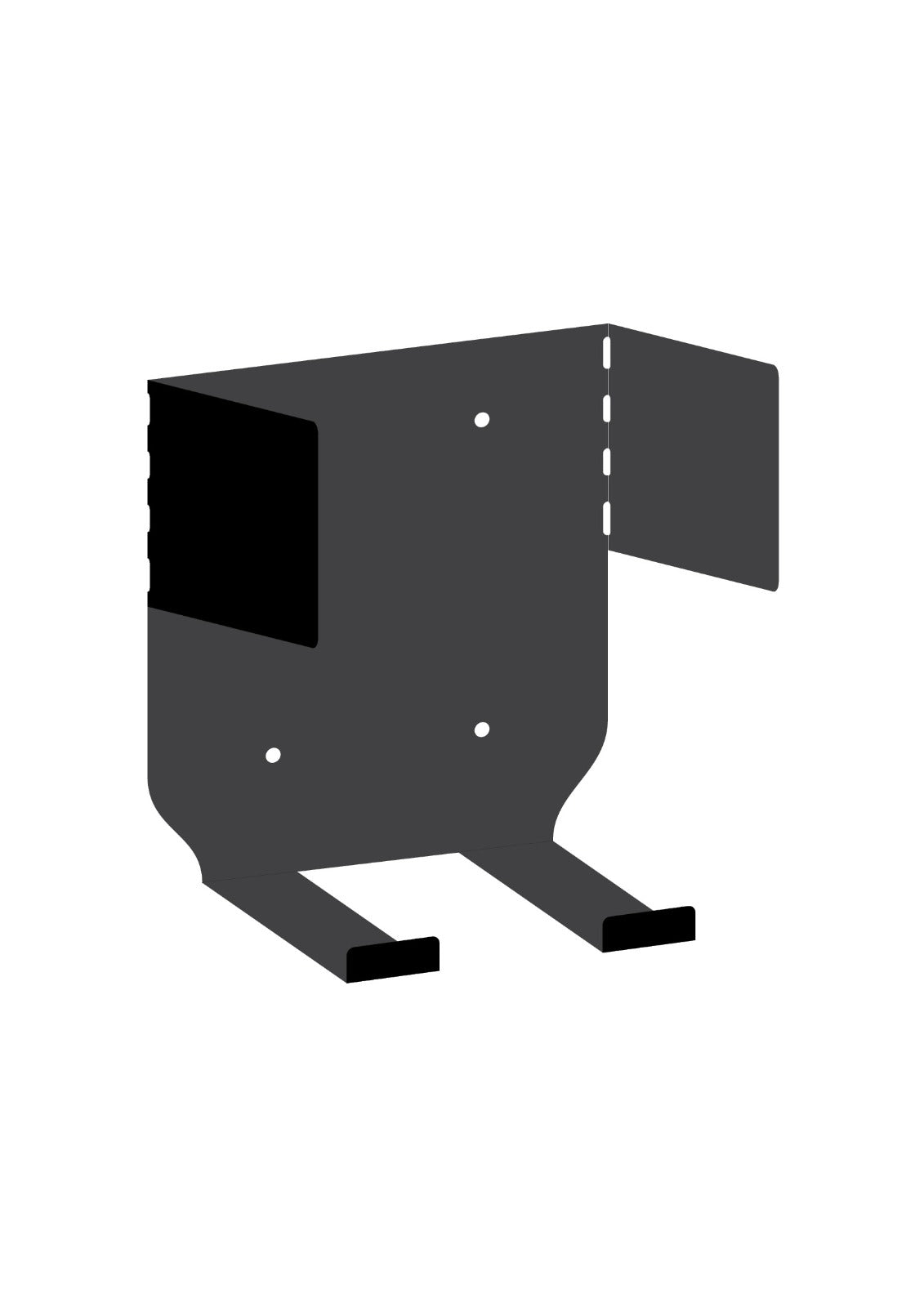

A wall mount bracket specially designed to position your WTP3 portable charger in a tidy, secure, and aesthetic manner.
Thanks to its durable metal body, it keeps your device stable, eliminates cable clutter, and makes your charging area more organized. It is ideal for home, office, parking lot, and garage use.
Key Features
- Design fully compatible with the WTP3 portable charger
- Robust and long-lasting metal structure
- Easy wall mounting
- Organized placement for cables and device
- Minimalist and stylish appearance
Areas of Use
- Home garages
- Site and apartment parking lots
- Workplace and showroom areas
Electric Vehicle Charging Station Installation Guide
Set up your charger easily with WiseCar. Guidance up to 100 meters is here!
- Required Materials: WiseCar Charger, copper cable, fuse box.
- Power Control: 40A fuse for 7.4 kW, 40A fuse for 22 kW.
Our recommendations for the correct cable cross-section:
| Strength | Distance | Cable Cross-Section | Notes |
|---|---|---|---|
| 7.4 kW (Single Phase) | 0-20 m | 3x6 mm² | Standard |
| 7.4 kW | 20-50 m | 3x10 mm² | Middle range |
| 7.4 kW | 50-100 m | 3x16 mm² | Long distance |
| 22 kW (Three Phase) | 0-25 m | 5x6 mm² | Standard |
| 22 kW | 25-50 m | 5x10 mm² | Middle range |
| 22 kW | 50-100 m | 5x16 mm² | Long distance |
Cable Calculation Tool
- Mark the wall mounting plate.
- Drill holes and insert the dowels.
- Secure the device.
Warning: Must be performed by a qualified electrician!
Connect the cables to the terminal blocks (L1, L2, L3, N, PE).
- Check the connections.
- Perform a test charge.
1. Keep away from children.
Use cable trays for distances of 2-100 meters.
3- During the installation and use of the device, avoid contact with sunlight. Otherwise, the device will activate its protection system due to overheating.
4. For safety reasons, the power supply to the device must be switched off when it is not in use.
-
